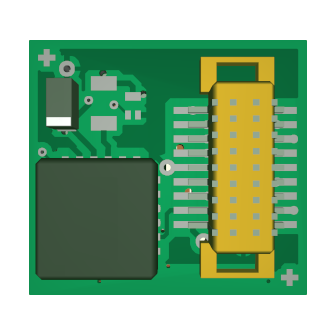

Doehler & Haass DH18A NEXT18 decoder

 32,97 Incl. BTW

Binnenkort verkrijgbaar

Uitverkocht

Artikelnummer: 830580 Categorie:

Beschrijving

Product features and functions

  • For optional operation with conventional DC locomotives, digital systems according to SelecTRIX 1 and 2 or DCC format
  • Switching between analogue and digital operation is automatic
  • In digital mode, the last programmed system is used (it does not switch automatically!)
  • SelecTRIX 1 31 speed steps, 100 addresses
  • SelecTRIX 2 127 speed steps, 10,000 addresses, 16 additional functions
  • DCC short addresses (1-127), long addresses (0001-9999), with 14, 28, 126 speed steps
  • Latest generation load control, resulting in particularly smooth control behavior
  • Various control variants for optimal adaptation to the engine
  • Internal 127 speed levels
  • Adjustable motor frequency (low frequency, 16 kHz, 32 kHz)
  • Block section operation with simple diodes in digital mode
  • Light and function outputs dimmable and analog activated
  • shunting gear
  • Motor, light and track connections electronically interchangeable
  • All function outputs freely programmable
  • Temperature protection
  • Reset function for DCC and SX2
  • Decoder update capability
DH18A (2nd generation)
Vehicle decoder 1.5 A

Operating mode SX1, SX2, DCC, MM, DC-analog
Dimensions [mm]9.7 * 8.9 * 2.8
Total load capacity1.5 A
Max. motor current1.5 A
Max. driving voltage30 V
LV, LR (dimmable)150 mA each
AUX1, AUX2 (dimmable)300 mA each
AUX3, AUX4unamplified
AUX5, AUX6unamplified
with SUSI interface (if AUX3/AUX4 deactivated)
