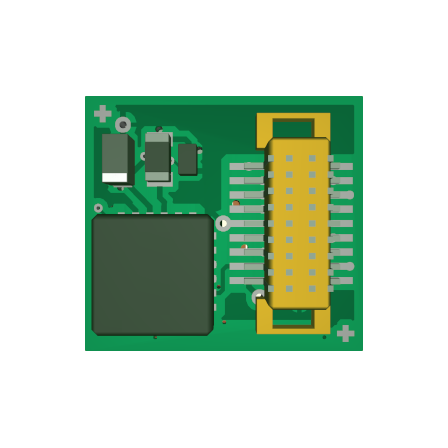

Doehler & Haass FH18A NEXT18 functiedecoder

 23,85 Incl. BTW

Uitverkocht

Artikelnummer: 830581 Categorie:

Beschrijving

Product features and functions

  • For optional operation with conventional DC drive units, digital systems according to SelecTRIX 1 and 2 or according to DCC format
  • The switch between analog and digital operation is automatic.
  • In digital mode, the last programmed system is used (it does not switch automatically!).
  • SelecTRIX 1 31 speed steps, 100 addresses
  • SelecTRIX 2 127 speed steps, 10,000 addresses, 16 additional functions
  • DCC short addresses (1-127), long addresses (0001-9999), with 14, 28, 126 speed steps
  • Internally 127 speed steps
  • Block section operation with simple diodes in digital operation
  • Light and function outputs (partially) dimmable and analogously activatable
  • Shunting
  • Light and track connections electronically interchangeable
  • All function outputs are freely programmable.
  • Temperature protection
  • Reset function for DCC and SX2
  • Decoder update capability
FH18A (2nd generation)
Vehicle function decoder 1.5 A

Operating modes SX1, SX2, DCC, MM, DC-analog
Dimensions [mm]9.7 * 8.9 * 2.8
Overall load capacity1.5 A
Max. driving voltage30 V
LV, LR (dimmable)150 mA each
AUX1, AUX2 (dimmable)300 mA each
AUX3, AUX4unamplified
AUX5, AUX6unamplified
with SUSI interface (if AUX3/AUX4 is deactivated)
Beschreibung
User manual
