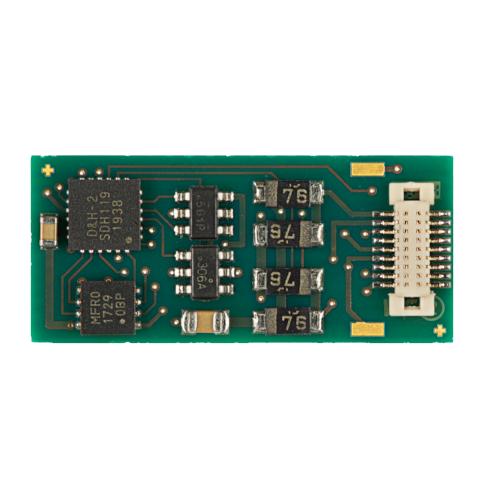

Doehler & Haass PD18A NEXT18 decoder

 24,70 Incl. BTW

4 op voorraad

Artikelnummer: 830551 Categorie: Merk:

Beschrijving

Product features and functions

  • For optional operation with conventional DC drive unit or according to DCC format
  • The switch between analog and digital operation is automatic.
  • DCC short addresses (1-127), long addresses (0001-9999), with 14, 28, 126 speed steps
  • Latest generation load control, resulting in particularly smooth control behavior
  • Various control options for optimal adaptation to the engine
  • Internally 127 speed steps
  • Adjustable motor frequency (16 kHz, 32 kHz)
  • Block section operation with simple diodes in digital operation
  • Light and function outputs are dimmable and can be activated analogously.
  • Shunting
  • Motor, light and track connections electronically interchangeable
  • All function outputs are freely programmable.
  • Temperature protection
  • Reset function for DCC
  • Decoder update capability
PD18A

Vehicle decoder 1.0 A

Operating mode DCC, DC-analog
Dimensions [mm] 23.8 * 10.8 * 2.0
Overall load capacity 1.0 A
Max. motor current 1.0 A
Max. driving voltage 30 V
LV, LR (dimmable) 150 mA each
AUX1, AUX2 (dimmable) 300 mA each
Beschreibung
User manual

The PD18A vehicle decoder is a new, particularly affordable vehicle decoder for pure DCC operation (and DC analog). There are only a few minor limitations compared to the DH decoder series:

  • No support for operating modes SX1, SX2 and MM
  • No SUSI interface and no unamplified function outputs
  • No low-frequency motor control (16 kHz or 32 kHz are selectable)
  • No extended function mappings (that is: no conditions, no initial mapping, etc.)
  • No automatic coupling sequence (timers for switching off AUX1 and AUX2 are available)

Aanvullende informatie

Fabrikant

Doehler & Haass Steuerungssysteme GmbH & Co. KG
Schulstraße 22, 85652 Pliening
[email protected]
doehler-haass.de
